| SonixClean | Model SC-16 |
| Capacity | 16 Gallons |
| Internal Dimensions | 28″x14″x16″ |
| Basket Measurements | 26″x12″x11″ |
| External Measurements | 42″x23″x35″ |
| Weight | 156Lb |
| Electrical Characteristics | |
| Power Supply | 230V |
| Heating Element | 3x450W |
| Ultrasonic Characteristics | |
| Ultrasonic Power | 800Wp (1600Wp-p) |
| Working Frequency | 40 KHz sweep system ± 2% |
The SonixClean SC-16 Ultrasonic Wash System is a compact industrial ultrasonic cleaner designed for small to mid-size batch parts cleaning. With a 16-gallon tank capacity, increased ultrasonic power, and durable stainless steel construction, the SC-16 delivers consistent, repeatable cleaning for automotive, manufacturing, laboratory, and light industrial applications.
The SC-16 is commonly selected when greater capacity and throughput are required beyond compact precision systems, while maintaining a manageable footprint and controlled ultrasonic performance.
Balanced Capacity for Small Industrial Batch Cleaning
Positioned as a step above entry-level ultrasonic systems, the SC-16 supports a wider range of part sizes and batch volumes. Its increased tank dimensions and ultrasonic output make it suitable for facilities cleaning small assemblies, machined components, and automotive parts with moderate contamination.
For smaller precision applications, consider the SC-11 Ultrasonic Wash System. For higher-output or more demanding cleaning processes, consider the SC-16 Plus Ultrasonic Wash System.
Need help selecting the right ultrasonic systemRequest a Quote
Typical Parts Cleaned with the SC-16
- Automotive components and accessories
- Machined metal parts and housings
- Small assemblies with oil or machining residue
- Laboratory and test components requiring repeatable cleaning
Cleaning Challenges the SC-16 Is Designed to Address
- Oil and coolant residue from machining operations
- Carbon buildup on small automotive components
- Debris trapped in internal passages or complex geometries
- Inconsistent results from manual or solvent-based cleaning
System Specifications and Engineering Details
- Tank capacity: 16 gallons
- Internal tank dimensions: 28 x 14 x 16 inches
- Basket dimensions: 26 x 12 x 11 inches
- Ultrasonic power: 800 Wp (1600 Wp-p)
- Working frequency: 40 kHz sweep system ±2%
- Heating element: 3 x 450 W
- Electrical requirements: 230 V power supply
- Sixteen high-performance PZT piezo-electric transducers

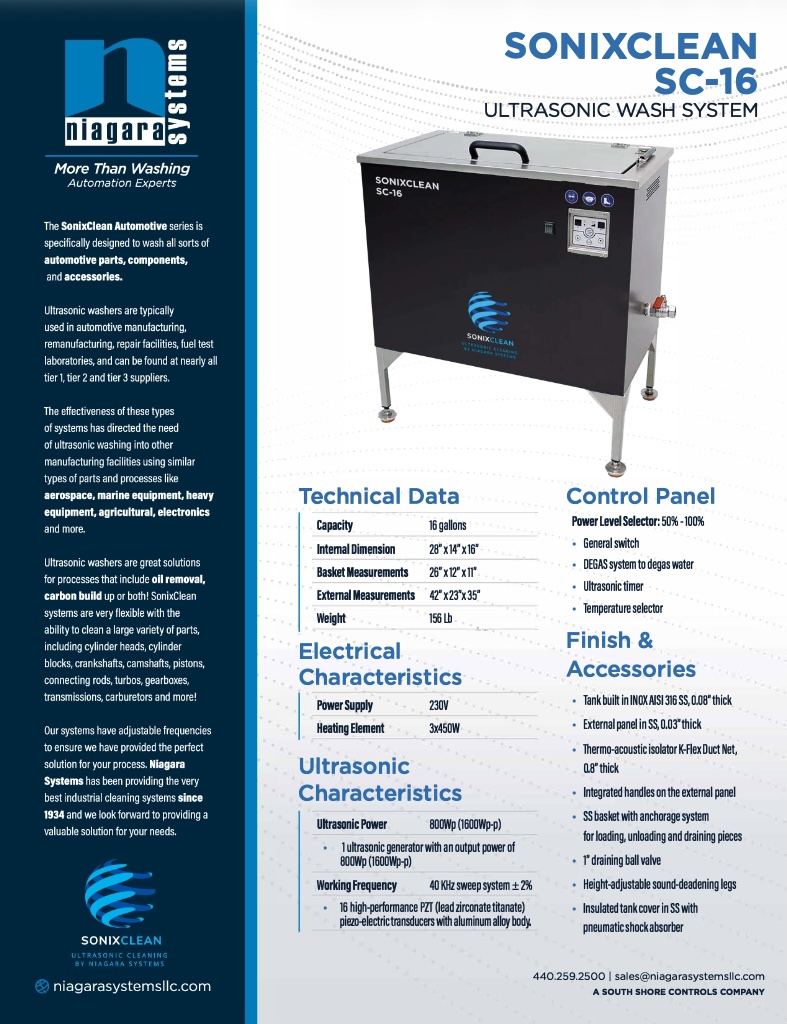

Additional electrical requirements, dimensions, and configuration details are available in the brochure provided on this page.
Industrial Construction and Operator Control
The SC-16 is built with an AISI 316 stainless steel tank and stainless steel external panels to support long-term industrial use. Operator controls allow adjustment of ultrasonic power, temperature, and cycle timing to match specific cleaning requirements.
- Power level selector from 50% to 100%
- DEGAS system for improved cavitation performance
- Insulated stainless steel tank cover with pneumatic shock absorber
- Sound-deadening insulation and height-adjustable legs
Advantages of the SonixClean SC-16
- Increased capacity over compact precision ultrasonic systems
- Balanced ultrasonic power for a wide range of parts
- Durable stainless steel construction for industrial environments
- Clear upgrade path within the SonixClean product lineup
Step into the future of cleaning technology with Niagara Systems’ industrial ultrasonic wash systems – where innovation meets excellence.
Request a Quote
If your application requires reliable ultrasonic cleaning with added capacity and consistent performance, the SonixClean SC-16 is a proven solution.
Frequently Asked Questions
Where does the SC-16 fit in the SonixClean lineup
The SC-16 is positioned between compact precision systems and higher-output models, offering a balance of capacity, power, and footprint for small industrial batch cleaning.
How does the SC-16 differ from the SC-16 Plus
The SC-16 Plus is designed for higher output and more demanding applications, while the SC-16 provides standard industrial performance for moderate batch sizes and contamination levels.
