| SonixClean | Model SC-132 |
| Capacity | 132 Gallons |
| Internal Dimensions | 51″x29″x26″ |
| Basket Measurements | 48″x26″x17″ |
| External Measurements | 81″x47″x42″ |
| Weight | 771Lb |
| Electrical Characteristics | |
| Power Supply | 480V |
| Heating Element | 900W |
| Ultrasonic Characteristics | |
| Ultrasonic Power | 6000Wp (12000Wp-p) |
| Working Frequency | 40 KHz sweep system ± 2% |
The SonixClean SC-132 Ultrasonic Wash System is a production-scale ultrasonic cleaner engineered for large, heavy, and complex industrial components. With a 132-gallon tank capacity, reinforced loading platform, and high-power ultrasonic output, the SC-132 is designed for manufacturing and remanufacturing environments that require repeatable, high-performance cleaning at scale.
This system is commonly selected by facilities that have outgrown smaller ultrasonic tanks and need a solution capable of supporting larger parts, higher weights, and more demanding duty cycles without sacrificing cleaning precision.
Typical Parts Cleaned with the SC-132
The SC-132 Ultrasonic Wash System is commonly used to clean large automotive and industrial components, including:
- Cylinder heads and engine blocks
- Transmissions and gearboxes
- Turbochargers and drivetrain components
- Heavy machined parts with internal passages
- Large housings and assemblies
The system’s ultrasonic configuration is designed to reach complex geometries and internal surfaces that are difficult or impossible to clean using traditional spray or manual methods.
Cleaning Challenges the SC-132 Is Built to Solve
Large components introduce unique cleaning challenges that smaller ultrasonic systems cannot accommodate. The SC-132 is engineered to address these challenges directly, including:
- Oil and grease saturation on large surface areas
- Carbon buildup within internal passages
- Inconsistent results from manual or spray-only processes
- Handling and cleaning of heavy components safely and efficiently
With high ultrasonic power output and multiple submersible emitters, the SC-132 delivers uniform cavitation throughout the tank, supporting repeatable cleaning results across large or densely loaded parts.
System Specifications and Engineering Highlights
The SC-132 Ultrasonic Wash System is built with industrial-grade materials and controls to support continuous-duty operation in demanding environments.
Key engineering features include:
- 132-gallon ultrasonic tank capacity
- High-power ultrasonic output with multiple emitters
- 40 kHz sweep frequency for consistent cavitation
- Reinforced pneumatic platform for loading and unloading up to 771 lb
- PLC-controlled 4.3″ touchscreen interface with programmable scheduling
- 480V power supply for industrial facility integration

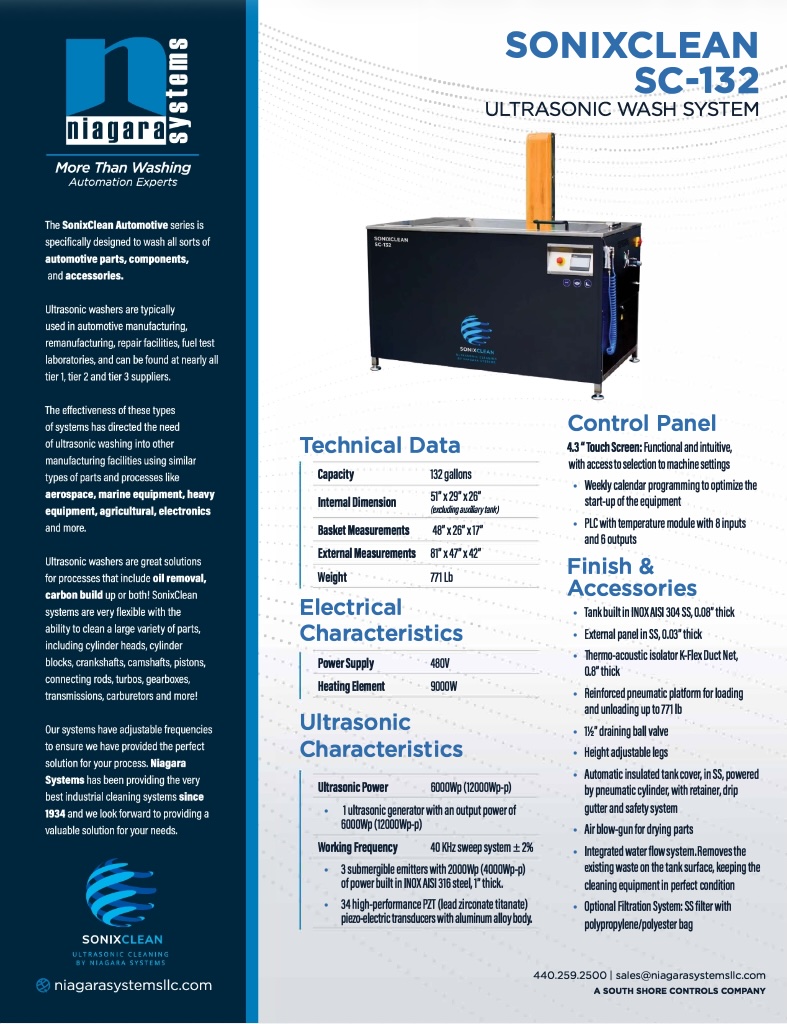

Detailed technical specifications, dimensions, electrical requirements, and accessory options are available in the downloadable brochure provided alongside this page.
Built for Industrial Environments
The SC-132 is designed for use in manufacturing and industrial settings where reliability and repeatability are essential. Common environments include:
- Automotive manufacturing and remanufacturing
- Heavy equipment production
- Industrial machining and fabrication
- Tier 1, Tier 2, and Tier 3 supplier facilities
The system’s construction, insulation, and integrated flow management features are intended to support long-term operation while maintaining cleaning performance and minimizing maintenance burden.
Advantages of the SonixClean SC-132
The SC-132 offers several advantages for operations requiring production-scale ultrasonic cleaning:
- Supports heavy components and large batch sizes
- Provides consistent, repeatable cleaning results
- Reduces reliance on manual cleaning processes
- Improves access to internal geometries and blind holes
- Designed for integration into industrial workflows
These advantages make the SC-132 a practical solution for facilities seeking to improve cleaning efficiency, quality control, and process consistency.
Step into the future of cleaning technology with Niagara Systems’ industrial ultrasonic wash systems – where innovation meets excellence.
Request a Quote
If your operation requires ultrasonic cleaning for large or heavy components, the SonixClean SC-132 may be the right fit for your process.
Request a Quote to discuss your application with our team and determine whether the SC-132 or another SonixClean system best meets your requirements.
Frequently Asked Questions
Is the SC-132 suitable for continuous production use?
Yes. The SC-132 is designed for industrial environments and supports repeatable, production-grade ultrasonic cleaning.
How does the SC-132 compare to smaller SonixClean models?
The SC-132 offers significantly greater tank capacity, load handling, and ultrasonic power than smaller models, making it better suited for large components and higher throughput requirements.
What power requirements are needed for the SC-132?
The system operates on a 480V power supply, which is typical for industrial manufacturing facilities.
Can the SC-132 be customized for specific processes?
Optional accessories and system configurations are available to support specific cleaning requirements and workflows.
How does the SC-132 compare to smaller SonixClean models?
Smaller SonixClean systems are designed for precision or light production applications, while the SC-132 is intended for large components, heavier loads, and production-scale ultrasonic cleaning.
