| SonixClean | Model SC-6.6 |
| Capacity | 66 Gallons |
| Internal Dimensions | 35″x24″x25″ |
| Basket Measurements | 34″x23″x15″ |
| External Measurements | 64″x40″x41″ |
| Weight | 75Lb |
| Electrical Characteristics | |
| Power Supply | 480V |
| Heating Element | 7500W |
| Ultrasonic Characteristics | |
| Ultrasonic Power | 3400Wp (6800Wp-p) |
| Working Frequency | 40 KHz sweep system ± 2% |
The SonixClean SC-6.6 Ultrasonic Wash System is a compact, precision ultrasonic cleaner designed for small automotive and industrial components that require consistent, controlled cleaning. With a 6.6-gallon tank capacity and adjustable ultrasonic power levels, the SC-6.6 is well suited for applications where accuracy, repeatability, and footprint efficiency are critical.
This system is commonly used in repair facilities, laboratories, and light manufacturing environments where parts feature tight tolerances, complex geometries, or internal passages that are difficult to clean using traditional methods.
Designed for Precision and Small-Batch Cleaning
The SC-6.6 is engineered for operations that require ultrasonic cleaning without the space, power, or throughput demands of larger production systems. Its compact design allows it to integrate easily into existing workflows while still delivering the benefits of ultrasonic cavitation.
This model is an ideal starting point for facilities introducing ultrasonic cleaning or for processes where parts are cleaned in smaller batches with a high emphasis on precision.
For applications involving larger components, heavier loads, or higher throughput requirements, larger SonixClean ultrasonic systems are available, including production-scale models such as the SC-132 Ultrasonic Wash System.
Typical Parts Cleaned with the SC-6.6
The SC-6.6 Ultrasonic Wash System is commonly used to clean smaller components with intricate features, including:
- Carburetors and fuel system components
- Injectors and valves
- Small machined parts and housings
- Precision components with internal passages
- Laboratory and test components
The system’s 40 kHz ultrasonic frequency is effective for removing contaminants from tight spaces and blind holes without damaging sensitive parts.
Cleaning Challenges the SC-6.6 Is Built to Solve
Small and precision components often present cleaning challenges that manual or spray-based systems struggle to address. The SC-6.6 is designed to solve challenges such as:
- Oil and grease residue on precision parts
- Carbon buildup in small internal passages
- Inconsistent results from manual cleaning
- Risk of part damage from aggressive cleaning methods
Adjustable ultrasonic power levels allow operators to fine-tune the cleaning process based on part material, geometry, and contamination level.
System Specifications and Engineering Highlights
The SC-6.6 Ultrasonic Wash System is constructed using industrial-grade materials and includes controls that support repeatable, process-driven cleaning.
Key engineering features include:
- 6.6-gallon ultrasonic tank capacity
- Adjustable ultrasonic power levels (50–100%)
- 40 kHz sweep frequency for consistent cavitation
- Stainless steel tank construction (AISI 316)
- Integrated heating and temperature control
- Compact footprint for space-constrained environments

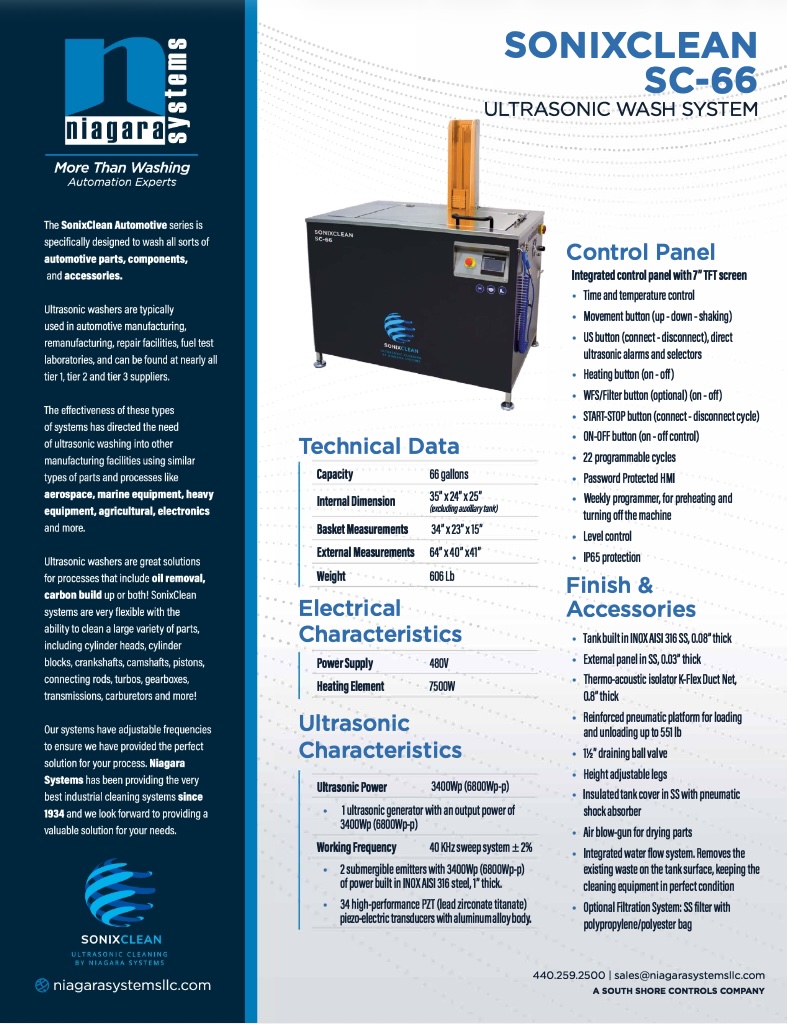

Complete technical specifications, dimensions, and electrical requirements are available in the downloadable brochure provided alongside this page.
Built for Industrial Environments
The SC-6.6 is designed for use in environments where precision and control are more important than high throughput. Common applications include:
- Automotive repair and remanufacturing
- Fuel testing laboratories
- Electronics and precision manufacturing
- Industrial maintenance and service operations
Its size and power requirements make it a practical option for facilities that need ultrasonic cleaning without significant infrastructure changes.
SonixClean SC-6.6 Advantages
The SC-6.6 offers several advantages for precision cleaning applications:
- Consistent ultrasonic cleaning for small components
- Improved access to internal geometries and tight tolerances
- Reduced reliance on manual cleaning methods
- Compact design that fits easily into existing workflows
- Controlled power output to protect sensitive parts
These advantages make the SC-6.6 a reliable solution for operations focused on accuracy and repeatability rather than large-scale throughput.
Step into the future of cleaning technology with Niagara Systems’ industrial ultrasonic wash systems – where innovation meets excellence.
Request a Quote
If your application involves precision parts or small-batch ultrasonic cleaning, the SonixClean SC-6.6 may be the right fit for your process.
Request a Quote to discuss your application with our team and determine whether the SC-6.6 or another SonixClean system best meets your requirements.
Frequently Asked Questions
Is the SC-6.6 suitable for production environments?
The SC-6.6 is best suited for small-batch and precision applications. For higher throughput or larger components, larger SonixClean systems are typically recommended.
What types of parts are best cleaned in the SC-6.6?
The SC-6.6 is ideal for smaller components such as injectors, valves, carburetors, and precision machined parts with internal passages.
How does the SC-6.6 compare to larger SonixClean models?
Facilities transitioning from precision cleaning to production-scale ultrasonic washing often evaluate larger systems such as the SC-33, SC-66, or SC-132, depending on part size and throughput needs.
Does the SC-6.6 include heating and temperature control?
Yes. The system includes integrated heating and temperature control to support consistent and repeatable cleaning processes.
